AL/PR7-1500-N-E-SET3

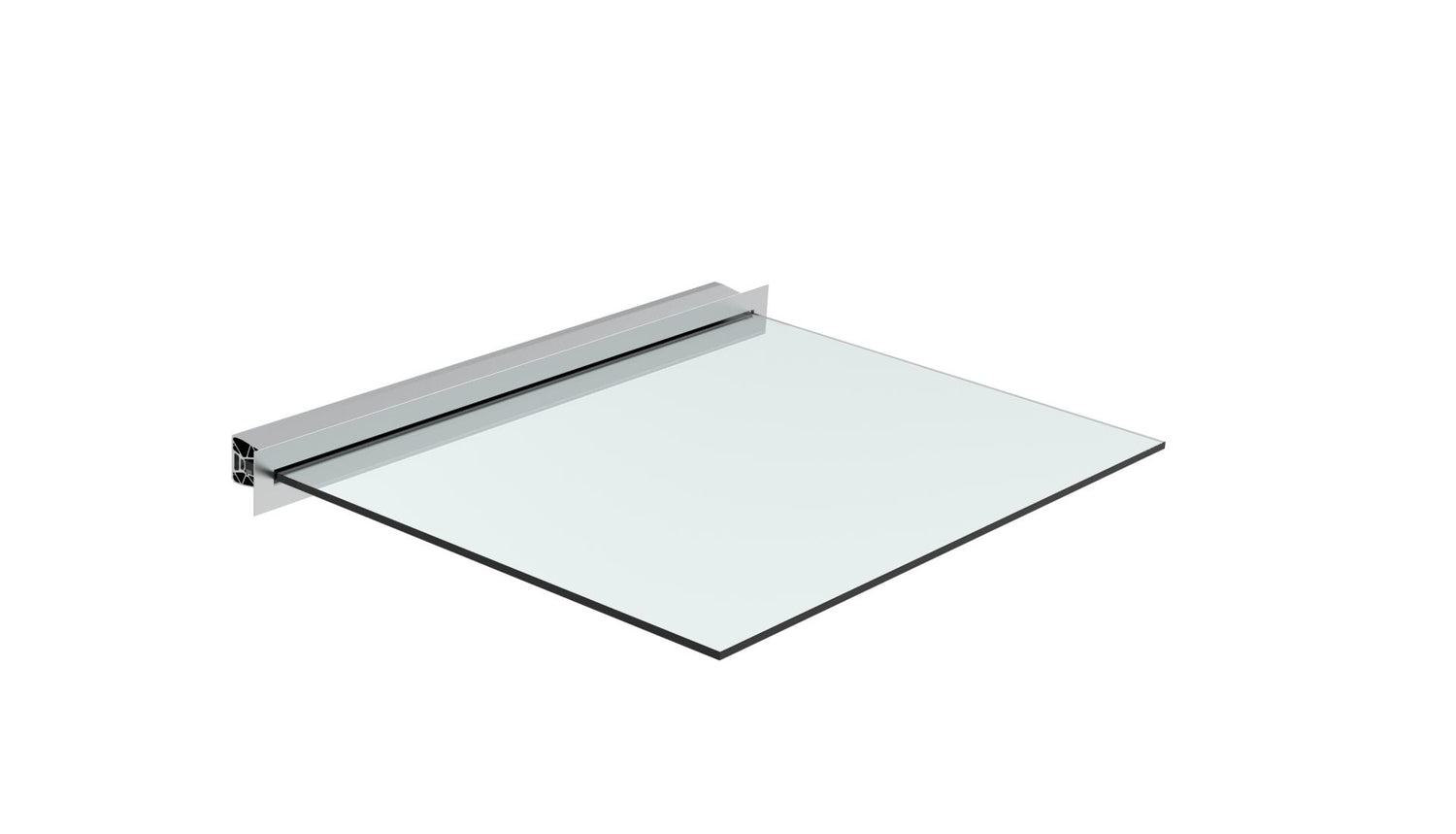

Canopy with aluminium channel profile

Material: Aluminium/EPDM/Plastic, Surface finish: Raw, Glass t: 12,76-13,52/16,76-17,52/20,76-21,52, L: 1500, G/h kN: 1,5

€339,09
without VAT
€417,08
with VAT
SET
Stock availability
SK Krompachy 5
SK Banská Bystrica 0
SK Bratislava R1 0

Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Description

Glazed aluminum canopy for laminated safety glass 12.76-13.52 / 16.76-17.52 / 20.76-21.52. The set includes an aluminum profile, end caps, cover, seal, and necessary parts for the final assembly of the glass. Aluminum strip for glass shelter supplied without glass and anchoring material.

Parameters

Canopy with aluminium channel profile
Material
Defines the material from which the product is made.
Aluminium/EPDM/Plastic
Surface finish
Surface finish of product
Raw
Glass t
Determines the thickness of the glass in mm the product is suitable for
12,76-13,52/16,76-17,52/20,76-21,52
L
Length parameter of the product
1500
G/h kN
1,5

Download

STEP
STEP file
PDF

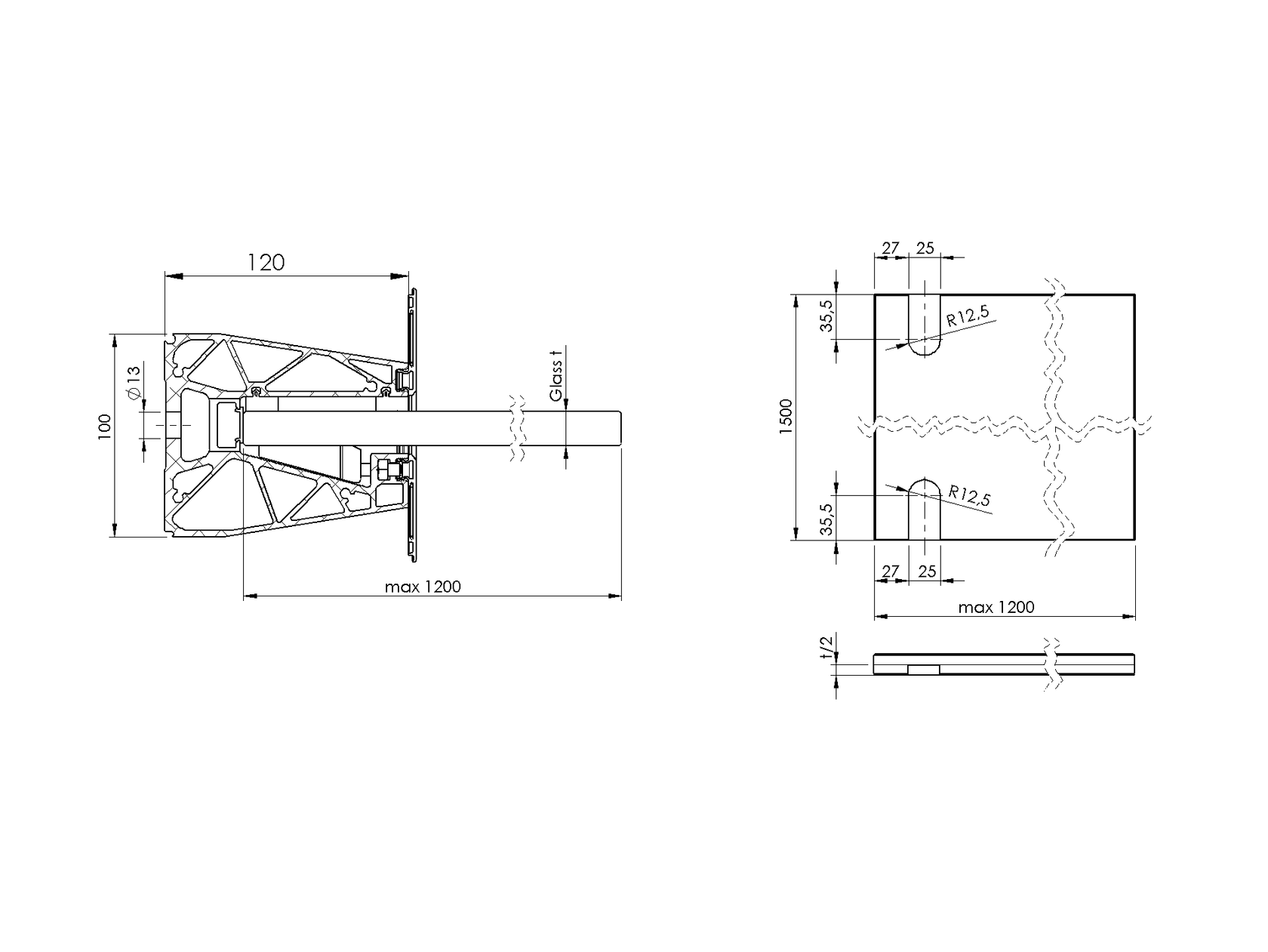

Parametric drawing
PDF
Instalation manual
PDF
Certificate report
PDF
Test report

Parts of set

Kotviaci klin pre prístrešok PR7

Anchoring peg for shelter PR7 A19/PR7-1

7 pcs
Material
ABS
Surface finish
Raw
Diffuser for LED profile

Diffuser for LED profile A19/23x24-LED-PVC

1 pcs
Material
PVC
Surface finish
Milky
L
2500
Glass inlay

Glass inlay A19/PR7-3-013-03.0

1 pcs
Material
EPDM
Glass t
12,76-13,52
L
3000
Glass inlay

Glass inlay A19/PR7-3-017-03.0

1 pcs
Material
EPDM
Glass t
16,76-17,52
L
3000
Glass inlay

Glass inlay A19/PR7-3-021-03.0

1 pcs
Material
EPDM
Glass t
20,76-21,52
L
3000
Hexagon socket set screw with flat point, AISI304, M6x35

Hexagon socket set screw with flat point, AISI304, M6x35 A-DIN 913-A2 M6x35

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
35
Hexagon nut, stainless steel

Hexagon nut, stainless steel A-DIN 934 M6

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
M
6
Kotviaci klin pre prístrešok PR7

Anchoring peg for shelter PR7 A19/PR7-2

2 pcs
Material
ABS
Surface finish
Raw
Hexagon socket head cap screw, AISI304, M6x20

Hexagon socket head cap screw, AISI304, M6x20 A-DIN 912-A2 M6x20

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
L
20
Square nut, stainless steel

Square nut, stainless steel A-DIN 562 M6

7 pcs
Material
Stainless steel AISI 304
Surface finish
Raw
M
6
